Manufacture: ASUS
SKU: ROG STRIX X870-A GAMING WIFI
Weight: 5 lbs 5 ozs
ASUS ROG Strix X870-A Gaming WiFi AMD AM5 X870 ATX Motherboard ...
Sold and Shipped: B2B sales within Canada
Price: CAD $750.37
Only sold with system kit.
Product Details

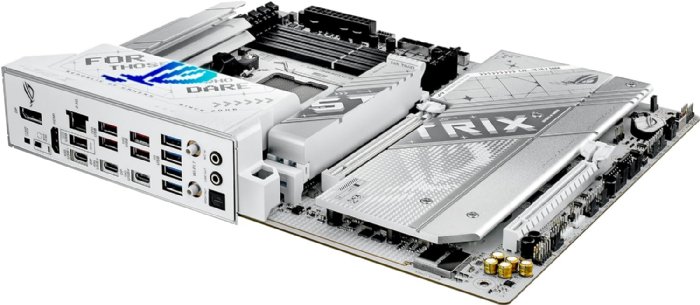

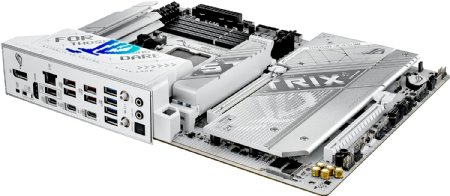

ASUS ROG Strix X870-A Gaming WiFi AMD AM5 X870 ATX Motherboard, 16+2+2 Power Stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 4X M.2, PCIe® 5.0, Q-Release Slim, USB4®, AI OCing & Networking


  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AMD AM5 Socket: Ready for AMD Ryzen 7000, 8000 and 9000 series desktop processors
  • Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance
  • ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
  • Robust Power Solution: 16+2+2 power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
  • Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cool


Primary Information
Mainboard Form Factor:
ATX
Compatible Processors:
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Audio Output:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Processor
Processor / Socket Type:
Socket AM5
Memory
RAM / Technology:
DDR5
RAM / Max Supported Size:
192 GB
Expansion
Expansion Slots Total (Free):
AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode). AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**. AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode).
Interfaces & Connections:

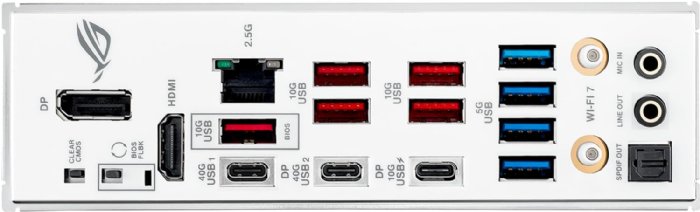

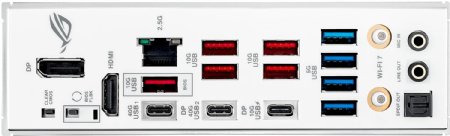

2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode) 6 x USB 10Gbps port(s) (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)** 4 x USB 5Gbps port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 2 x Audio jacks

Dimensions&Miscellaneous
Width:
12 Inch
Depth:
9.6 Inch
Service&Support
Service & Support Type:
3 Years
Special Feature
COO:
CHINA / TAIWAN / VIET NAM / THAILAND
UNSPSC Code
UNSPSC Code:
43201513
